For further detailed information, please refer to the Instruction / User
Manual Guide attached in the "Download Product Details" Section.
NOTE: Diagram Structure labelled in the pictures might slightly be different with Part / Model Number difference.
PRODUCT DETAILS:
- Cutting Style: Cross-cut for enhanced security
- Shred Size: 4 x 45 mm confetti pieces, ensuring DIN security level P-3
- Sheet Capacity: Handles up to 11 sheets of 70 gsm paper or 10 sheets of 80 gsm paper in one go

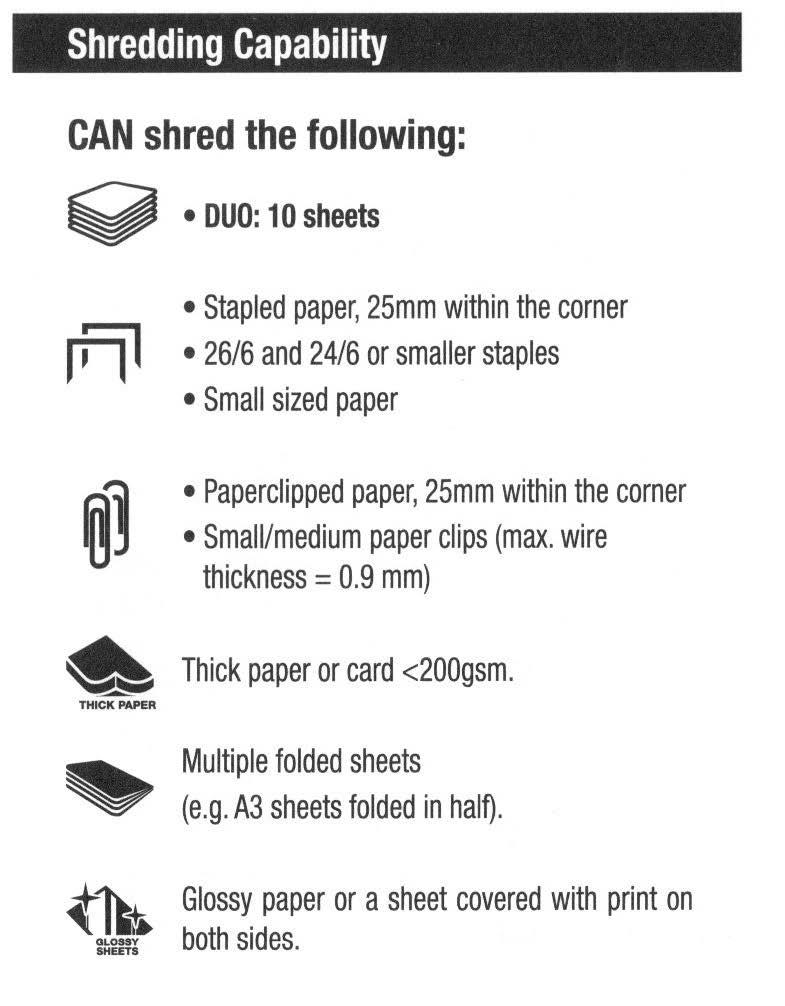

- Material Compatibility: Shreds credit cards, CDs and Paper documentation
- Speed: Operates at a swift pace of 2.5 meters per minute for efficient shredding
- Auto-Rest Feature: Rests for 30 minutes after 2 minutes of continuous shredding to prevent motor overheating

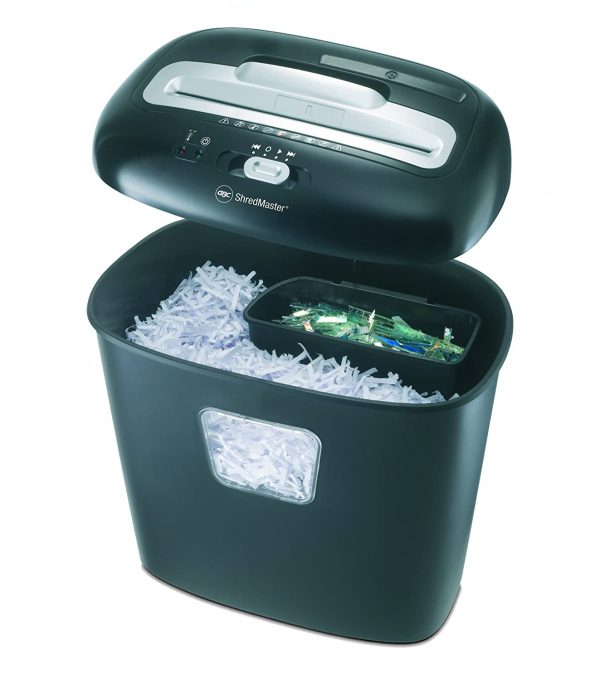

- Bin Capacity: Spacious 17 Liters bin with a viewing window, accommodating up to 100 sheets of shredded material

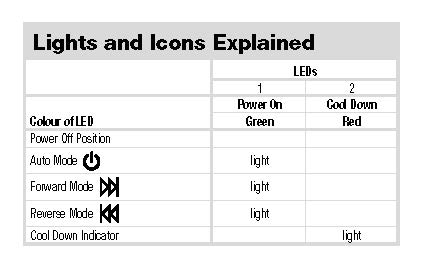

- User-Friendly Features: Includes an auto-on system and bin full indicator for convenient operation
- Noise Level: Runs quietly at 70 dB, comparable to a hairdryer, minimizing workplace disruption
- Compact Design: Suitable for office use

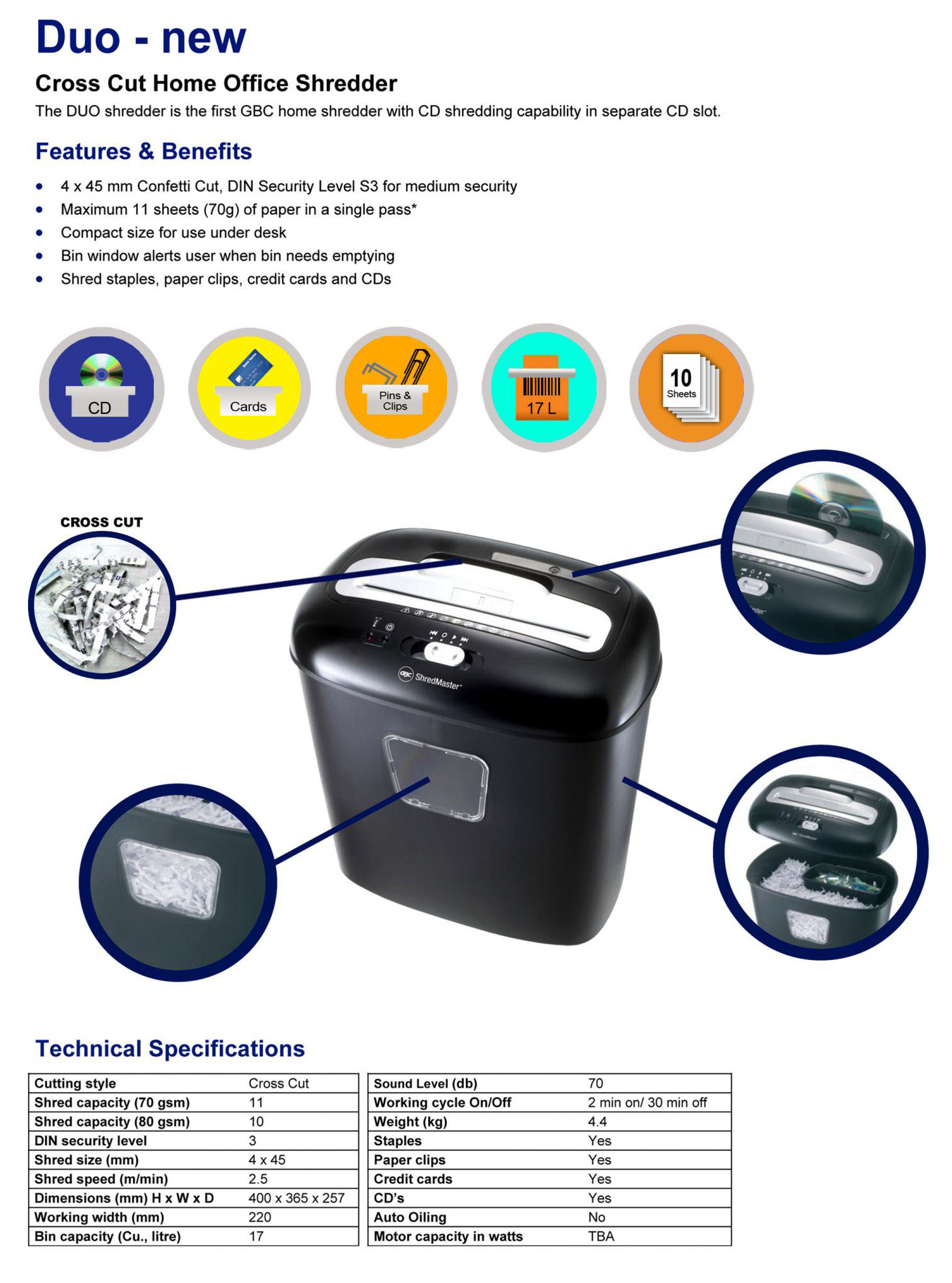

TECHNICAL SPECIFICATIONS:
Â
Sheet Capacity: Manual
Feed Slot
|
10 Sheets (80gsm)
11 Sheets (70 gsm)
|
Shred
Material
|
Paper,
CD, Card
|
DIN
Security Level
|
S3 / P-3
|
Confetti
Size
|
4 mm x 45
mm
|
Entry / Throat Width
|
220 mm
|
Bin Capacity
|
17 Liters
|
Duty Cycle
|
2 min ON / 30 min OFF
|
Noise
Level
|
70 db
|
Volts / Hz
|
230 V ~ 50 Hz
|
Amperage
|
1.1 - 1.4 Amps
|
Power Consumption
|
280 ±10% Watts
|
Product
Dimensions (Height x Width x Depth)
|
14.567 x 13.386
x 9.055 Inches 370 x 340 x 230 mm
|
Speed
|
2.5 Meters per Minute
|
Shredder Cut Styles, Security Types & Security Levels
Cut Style |
Security Type |
Security Level |
 Strip-Cut |
Basic |
 P-2 |
 Cross-Cut |
Secure |
 P-3 |
 Super Cross-Cut |
Confidential |
 P-4 |
 Micro-Cut |
High |
 P-5 |
 High Security |
Top Secret |
 P-7 |
